Single Tachometer 6503 Series

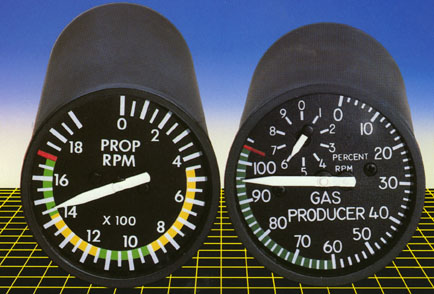

6503 Tachometers



The INSCO 6503A series of single tachometers are servoed replacements for "drag magnet" tachometers. These beautifully designed and updated tachometers really perform. With greater accuracy, smoother operation and elimination of friction and position errors, the 6503A series offers maximum reliability. In fact, many INSCO 6503A series tachometers have been in daily service in 1972, and today's design is greatly inspired from that of the earlier instruments.

SPECIFICATIONS:
The 6503A operates from either a standard 2 or 4 pole tachometer generator, or from a magnetic pulse (monopole) transmitter. The indicator is entirely self-contained, requiring only 28 volts DC power, and a frequency (speed) input).

It is available with or without a Vernier pointer, and has specified accuracy of + / - 0.5% F.S. It is also available with an overspeed or underspeed warning lamp on the dial, and connector contacts for remote warning functions.

The 6503A has been designed with maximum reliability in mind. There are no punched gears or bushings in an INSCO gearhead. We use precision machined close-tolerance aluminum and stainless steel gearing, and every gear shaft runs in ABEC7P miniature bearings. All electronic components are selected with a wide 'cushion' to prevent premature failure, and much of the circuitry is hybridized into a custom thick-film circuit.

OPTIONS:
Vernier Pointer
MS33638 or MS33639 case (2")
MS31113-10-6P connector standard, any connector available

Coverglass coating: MIL-C-675 or MIL-C-14806
Overspeed or underspeed warning light
Pin outputs for external speed warnings
Lighting:
bullet Internal (wedge, spray, or transilluminated)
bullet Add-on bezel lighting
bullet5 or 28 volt
bullet White, blue/white (MIL-L-27160) or red (MIL-L-25467)
bulletNVIS Compatible Lighting also available.

Range markings to your requirements, screened on the dial.

As with all INSCO instruments, the 6503A single tachometer was designed and engineered with rigorous adherence to the highest quality standards.

At INSCO™, our teams demand the best and that's exactly what we deliver!
