Dual Temperature Indicator 9031

The INSCO 9031 series dual temperature indicator is arranged to provide temperature indication from two independent sources. These sources can include: Cockpit Instrument, Gearbox Battery, Cylinder Head, and Exhaust Gas Temperature.  This reliably rugged unit features two 120 degree scales which are arranged to the outside of the dial for easier reading. Both scales utilize a shock-protected precision meter-movement.

SPECIFICATIONS:
On the INSCO 9031 dual temperature indicator, all inputs and outputs are adequately are adequately filtered and arranged to meet the requirements of   MIL-I-6181D.

The temperature measurement function operates from an MS28034 or equivalent temperature bulb.

MEASURED TEMPERATURE RANGE:

Measured temperature ranges per customer specifications between -50C (-58F) and 250C (482F) are available.  Indicator resting position without power is below range to provide indication of instrument operation.

The 9031 series is qualified to TSO-C43, type I for temperature type indicators (AS-413)  Power requirements are 28 volts DC nominal per MIL-STD-704. The standard case is 'O'-ring sealed. Hermetic sealing is available as an option.

As with all INSCO instruments, the 9031 dual temperature indicator is designed and engineered with rigorous adherence to the highest quality standards.

At INSCO, our engineering and manufacturing teams demand the best quality and performance and that's  exactly what INSCO delivers!

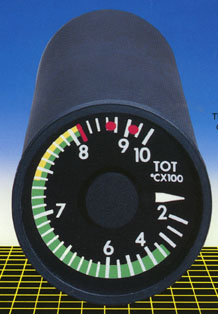

5032 Temperature Guage
Similar Gauge Image

PROVIDED:
MS33638 or MS33639 case (2")
MS3113-12-10P connector standard

OPTIONS:
A variety of connectors are available.
Coverglass coating: MIL-C-675 or MIL-C-14806

Lighting:

bullet Integral (wedge, spray, or transilluminated)
bullet Add-on bezel lighting
bullet5 or 28 volt
bullet White, blue/white (MIL-L-27160) or red (MIL-L-25461)
bulletNVIS Compatible Lighting also available.

Range Markings:

Instrument range and range markings are custom screened on the dial to meet your requirements.
